• Rear axle, 3.73 ratio
• Alternator, 160 amps (Standard on 1/2 ton models. Included and only available with (VYU) Snow Plow Prep Package on 4x4 3/4 ton models. Not available on 2WD 3/4 ton models.)
• Recovery hooks, front, frame-mounted (Not available on 2WD 1/2 ton models, except when (Z71) Off-Road Suspension Package is ordered. Included and only available with (Z71) Off-Road Suspension Package.)
• Transfer case, electronic Autotrac with rotary controls (Not available on 2WD models.)
• 4-wheel drive
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Trailering equipment, heavy-duty, includes trailering hitch platform, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector and (VR4) 2" trailering receiver
• GVWR, 7400 lbs. (3357 kg) (Requires 4x4 1/2 ton models.)
• Suspension, front coil-over-shock with stabilizer bar (1/2 ton models only.)
• Suspension, rear multi-link with coil springs (1/2 ton models only.)
• Steering, power

• Wheels, 4 - 17" x 7.5" (43.2 cm x 19.1 cm) aluminum, 5-spoke with smooth surface and rectangular pockets (1/2 ton models only. Not available with (Z71) Off-Road Suspension Package.)
• Tires, P265/70R17 all-season, blackwall (Requires 1/2 ton models. Not available with (Z71) Off-Road Suspension Package.)
• Fog lamps, front, halogen
• Tire, spare P265/70R17 (1/2 ton models only. Upgradeable to SEO (4JP) P265/70R17 on-/off road, blackwall spare tire.)
• Wheel, 17" (43.2 cm) full-size, steel spare (1/2 ton models only.)
• Tire carrier, lockable outside spare, winch-type mounted under frame at rear
• Luggage rack side rails, roof-mounted, Black
• Fascia, front color-keyed
• Fascia, rear color-keyed
• Moldings, color-keyed bodyside
• Assist steps, Black (Not available with (Z71) Off-Road Suspension Package.)
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Daytime Running Lamps, with automatic exterior lamp control
• Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming, with integrated turn signal indicators, ground illumination and curb-tilt (Mirror caps are color-keyed. Mirror caps are satin chrome with (Z71) Off-Road Suspension Package.)
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Wiper, rear intermittent with washer
• Door handles, color-keyed (Included and only available with (Z71) Off-Road Suspension Package.)
• Body, liftgate with liftglass, rear door system with rear-window wiper/washer

• Audio system, AM/FM stereo with MP3 compatible 6-disc in-dash CD changer seek-and-scan, digital clock and auto-tone control and auxiliary audio input jack (Not available with (PCJ) Sun, Entertainment and Destinations Package.)
• Audio system feature, Bose premium 9-speaker system with subwoofer in center console
• Audio system controls, rear with 2 headphone jacks (headphones not included), power outlet and controls for volume, station selection and media
• XM Satellite Radio, With a wide variety of programming, XM has something to excite any driver. Whether you want to be entertained or informed, to laugh, think, or sing, XM has the perfect channel for you - coast-to-coast, and in digital-quality sound. 3 trial months - no obligation (Available in the 48 contiguous United States. Required $12.95 monthly subscription sold separately after 3 trial months. All fees and programming subject to change. Subscription subject to customer agreement. For more information, visit gm.xmradio.com.)

• Seats, front bucket with leather-appointed seating, 10-way power driver and front passenger seat adjusters, including power lumbar control, heated seat cushion and seatbacks, 2-position driver memory, adjustable head restraints, storage pockets and floor console
• Seats, third row 50/50 split-bench 2-passenger, removable, all-belts-to-seat includes 2 cup holders and storage bin
• Console, floor with storage area, cup holders and integrated second row audio controls
• Pedals, power-adjustable for accelerator and brake
• Rear Parking Assist, Ultrasonic with rearview LED display and audible warning
• Remote vehicle starter system includes Remote Keyless Entry
• Floor covering, color-keyed carpeting
• Floor mats, color-keyed carpeted first and second row, removable
• Air conditioning, tri-zone automatic climate control with individual climate settings for driver and right-front passenger
• Universal Home Remote includes garage door opener, programmable (Deleted when (VYU) Snow Plow Prep Package is ordered.)
• Seats, second row 60/40 split-folding bench 3-passenger with center armrest
• Steering wheel, leather-wrapped
• Steering wheel controls, mounted audio and cruise controls
• Warning tones, headlamp on, key-in-ignition, driver and right-front passenger safety belt unfasten and turn signal on
• Tire Pressure Monitoring System (does not apply to spare tire)
• Windows, power with driver Express-Down and lockout features
• Door locks, power programmable with lockout protection
• Cruise control, electronic with set and resume speed
• Theft-deterrent system, vehicle, PASS-Key III
• Heater, rear auxiliary with rear passenger heating ducts
• Air conditioning, rear auxiliary
• Defogger, rear-window electric
• Power outlets, 5 auxiliary, 12-volt, includes 2 on the instrument panel, 1 in the cargo area, 1 inside the center console and 1 at the back of the console.)
• Mirror, inside rearview auto-dimming with 8-point compass and outside temperature display
• Headliner, cloth
• Visors, driver and front passenger illuminated vanity mirrors, padded with cloth trim, extends on rod
• Assist handles, front passenger and second row outboard
• Lighting, interior with dome light, driver- and passenger-side door switch with delayed entry feature, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions

• StabiliTrak, stability control system with Proactive Roll Avoidance
• Brakes, 4-wheel antilock, 4-wheel disc, VAC power (1/2 ton models only.)
• OnStar, 1-year of Directions and Connections plan. Includes the innovative easy to use Turn-by-Turn Navigation services which provide voice-guided directions (where available). Also includes Automatic Notification of Air Bag Deployment, Stolen Vehicle Location Assistance, Emergency Services, Roadside Assistance, Remote Door Unlock, OnStar Vehicle Diagnostics, Hands-Free Calling, AccidentAssist, Remote Horn and Lights, Information and Convenience Services, and Driving Directions (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. Stolen Vehicle Location Assistance and Remote Door Unlock success varies with conditions. OnStar Vehicle Diagnostics available on most 2004 MY and newer GM vehicles. Diagnostic capability varies by model. Turn-by-Turn Navigation requires ABS and is not available in certain areas. Visit onstar.com or call 1-888-466-7827 for system limitations and details.)
• Air bags, dual-stage frontal, driver and right-front passenger with Passenger Sensing System (right-front passenger air bag status on overhead console) (Always use safety belts and the correct child restraints for your childs age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Air bags, head curtain side-impact, first and second row outboard seating positions with rollover sensor, includes third row seating positions with (AS3) 3-passenger third row 50/50 split-bench seat or (AW2) 2-passenger third row 50/50 split-bench seat (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your childs age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Safety belts, 3-point, driver and front passenger in all seating positions
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats

ENGINE, VORTEC 5.3L V8 SFI FLEXFUEL WITH ACTIVE FUEL MANAGEMENT

• capable of running on unleaded or up to 85% ethanol (310 hp [231.1 kW] @ 5200 rpm
• 335 lb-ft of torque [452.3 N-m] @ 4400 rpm)
• aluminum block (STD)

• SUSPENSION PACKAGE
• OFF-ROAD Includes off-road jounce bumpers
• specially-tuned springs and gas-charged monotube shocks
• (G80) heavy-duty locking rear differential
• (B71) front and rear wheel flares
• (N87) 4-18 x 8 (45.7 cm x 20.3 cm) aluminum wheels
• (QXN) P265/65R18 on-/off-road
• blackwall tires
• (NZZ) Skid Plate Package
• (BVV) tubular assist steps and (BPH) Z71 Off-Road Appearance Package which consists of unique front fascia
• satin chrome door handles
• grille insert and mirror caps. Also includes (V76) front frame-mounted recovery hooks. (1/2 ton models only. Requires (193) Ebony
• (223) Morocco Brown/Ebony or (843) Light Titanium/Ebony Custom leather-appointed interior trim. Requires (41U) Black
• (46U) Blue Granite Metallic
• (50U) Summit White
• (59U) Silver Birch Metallic or (66U) Deep Ruby Metallic exterior colors.) *Affects Color Availability* CF5
• KA6
• LC9
• M30
• PDD
• U42
• UVA

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 19
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 160
• Cooling System
• Total Cooling System Capacity (qts): 18.3
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 4200
• Curb Weight - Front (lbs): 2923
• Curb Weight - Rear (lbs): 2672
• Gross Vehicle Weight Rating Cap (lbs): 7400
• Gross Combined Wt Rating (lbs): 13,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1050
• Suspension
• Suspension Type - Front: Coil springs
• Suspension Type - Rear: Coil springs
• Spring Capacity - Front (lbs): 3600
• Spring Capacity - Rear (lbs): 4200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3925
• Axle Capacity - Rear (lbs): 4200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 1.81
• Shock Absorber Diameter - Rear (mm): 1.81
• Stabilizer Bar Diameter - Front (in): 1.41
• Stabilizer Bar Diameter - Rear (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.5 x 0.79
• Tires
• Front Tire Order Code: QAN
• Rear Tire Order Code: QAN
• Spare Tire Order Code: ZVL
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2104
• Rear Tire Capacity (lbs): 2104
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.75
• Steering Ratio (:1), At Lock: 17.75
• Turning Diameter - Curb to Curb (ft): 43.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 130.0
• Length, Overall w/rear bumper (in): 222.4
• Width, Max w/o mirrors (in): 79.1
• Height, Overall (in): 76.8
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 32.6
• Ground Clearance, Front (in): 10.5
• Ground Clearance, Rear (in): 9.1
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 101.8
• Cargo Area Length @ Floor to Seat 2 (in): 69.6
• Cargo Area Length @ Floor to Seat 3 (in): 35.6
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 49.1
• Cargo Box (Area) Height (in): 41.4
• Cargo Volume to Seat 1 (ft³): 137.4
• Cargo Volume to Seat 2 (ft³): 90.0
• Cargo Volume to Seat 3 (ft³): 45.8
• Interior Dimensions
• Passenger Capacity: 7
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.3
• Front Hip Room (in): 64.4
• Second Head Room (in): 38.5
• Second Leg Room (in): 39.5
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 61.8
• Third Head Room (in): 38.1
• Third Leg Room (in): 34.9
• Third Shoulder Room (in): 64.7
• Third Hip Room (in): 49.4
• Summary

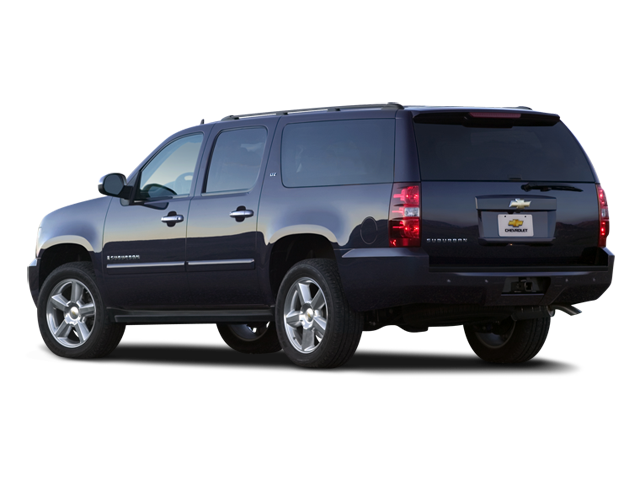

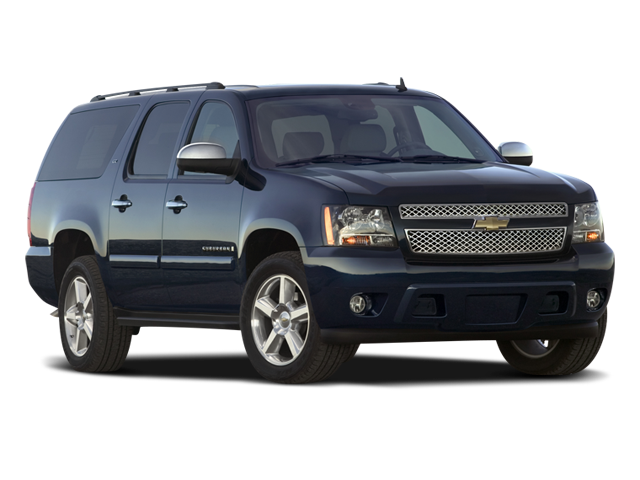

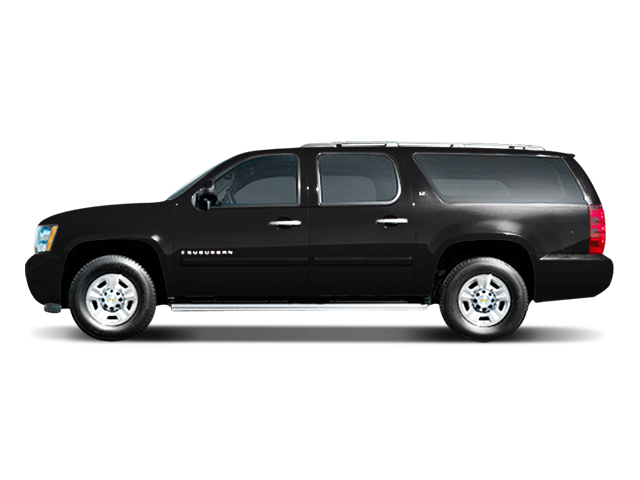

• Vehicle Name: Chevrolet Suburban
• Body Style: 4 Door 1500
• Body Code: E52
